Tip Seal Replacement for Agilent Dry Scroll Vacuum Pump-IDP Series

Honsva

$235.90 USD
$235.90 USD
Sale Sold out
Shipping calculated at checkout.
Style
View full details

All tip seals available for Agilent Scroll Vacuum Pump

IDP series: IDP-3, IDP-7, IDP-10, IDP-15 (Color available: yellow, dark grey)

Triscroll Series: Triscroll 300, Triscroll 600, Triscoll 620, Triscroll 800 (Color available: yellow, dark grey)

SH series: SH 100, SH 110, SH 120 (dark grey only)

Overview of Agilent Tip Seals for IDP Series

  1. The Agilent IDP dry scroll pumps are designed for a long service life and easy maintenance.
  2. The IDP dry scroll pumps use a solid, PTFE based tip seal design that offers from one to three years of service life in most common applications.
  3. Tip seals are a wearable part and require occasional replacement to keep the pump at optimal operating performance.
  4. Routine maintenance of Agilent scroll pumps consists of simple tip seal replacement.
  5. The IDP Series pumps require only the tip seal kit and common tools for tip seal replacement;
  6. The tip seals in a scroll pump form the basic axial vacuum seal between the rotating and stationary scrolls, deterring the gases being pumped from moving backwards through the pumping mechanism.
  7. The single sided design of the Agilent IDP pumps enables simple and quick basic service. IDP series single-sided scroll design means that you only need to remove the fixed scroll when changing the tip seals.

    HONSVA’s exclusively formulated and developed rebuild kits are used during maintenance or tip seal replacement on Agilent IDP series dry scroll vacuum pumps, available for Agilent Varian IDP-3, IDP-7, IDP-10, IDP-115 Dry Scroll Vacuum Pump. Tip Seal Replacement Kit Package contains only 2 pieces of replacement tip seal, in yellow, as described and shown on this page, no any other service parts. This VarianTip Seals Meet or Exceed OEM Specifications.

    Unlike traditional pumps that demand hours of scheduled maintenance, IDP scroll pumps require a simple tip seal replacement. The tip seal replacement process is easy and fast to perform, takes about 15 minutes, and uses only common tools, such as flat head screw driver, 4 and 5 mm Allen wrenches, is propel alcohol, lint-free wipes ( not included in HONSVA’S tip seal kit).

    Watch our live video to see how easy it is to replace the tip seals:
    www.agilent.com/chem/idp3
Explore More

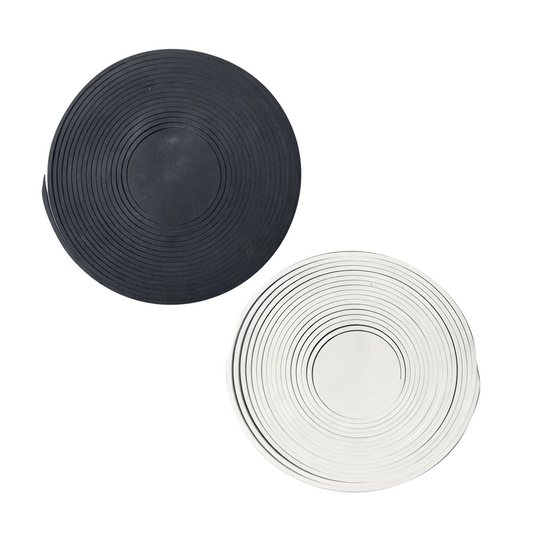

Tip Seals Replacement for Agilent Triscroll Series Vacuum Pump

There are four seal grooves should be fit for the Agilent Triscoll series vacuum pump, namely:

  1. the inboard housing
  2. the outboard housing
  3. both side of the orbiting plate.

This tip seals replacement kit comes with one tip seal, long Enough for 4 Scroll Grooves.

Follow the Quick User Guide available on the manufacturer's website and cut it short by yourself.

Add to Cart

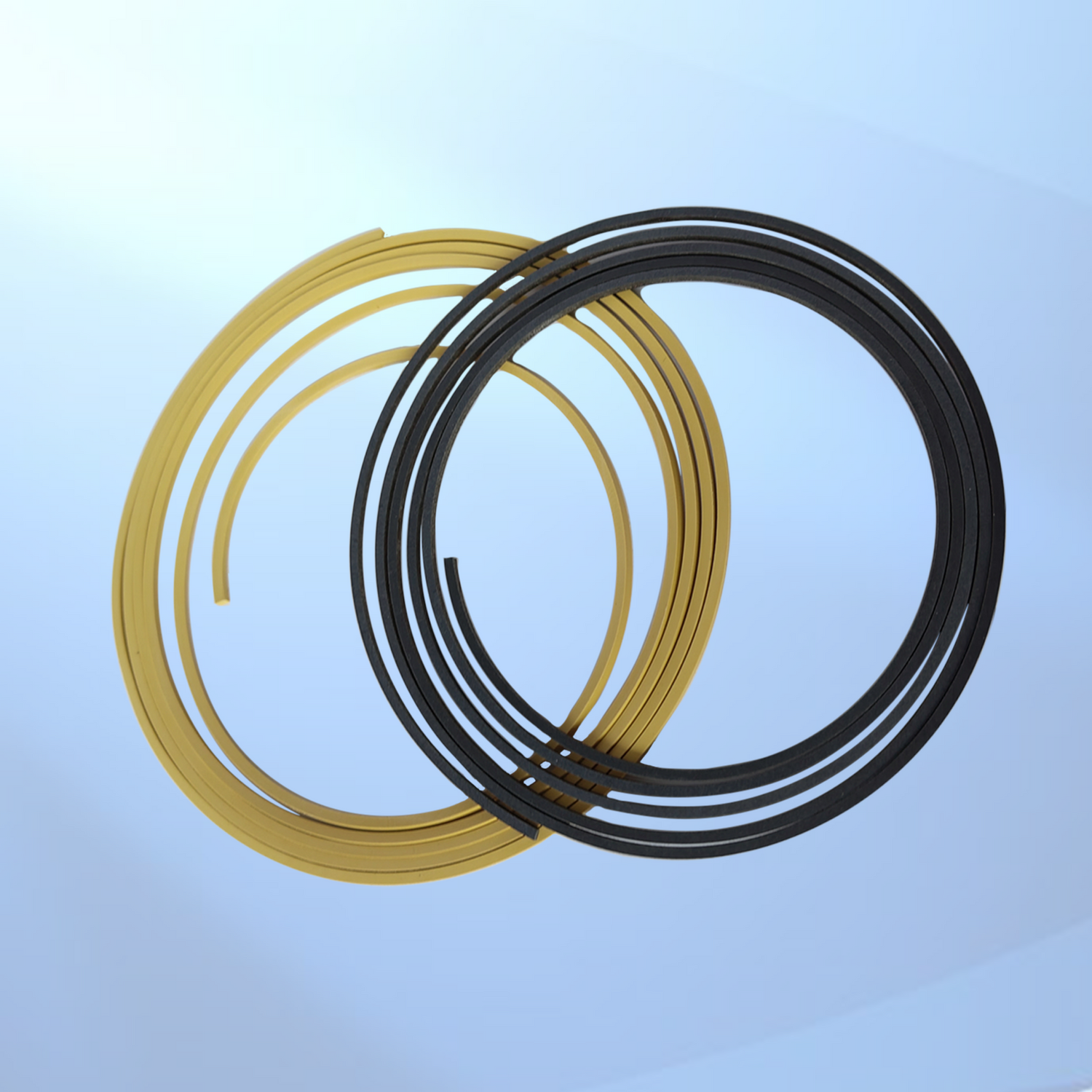

Two Color Available

HONSVA's tip seals for Agilent IDP series vacuum pump, we offer two color options for your routine maintenance budget.

The Yellow, same as the original

The Dark Grey, same material as the yellow, but lower cost.

Both color are the same performance.

Choose as your like.
